उत्पाद का विवरण
Place of Origin: China
भुगतान और शिपिंग की शर्तें
Minimum Order Quantity: 1set
Packaging Details: Plywood box safety packing
Delivery Time: 14 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100pcs per month
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |
Application:: |
General |
Medium Type:: |
Water, steam and oil etc. |
Mounting Type:: |
Direct Mount |
Standard Or Non-Standard:: |
Standard |
Flow way:: |
Two way |
Actuation:: |
Manual, Electric, Pneumatic,Automatic |
Sealing Performance:: |
Sealing |
Working Temperature:: |
Normal Temperature And High Temperature |
Pressure Application:: |
Normal Pressure |
Quality Warranty:: |
18 Months |

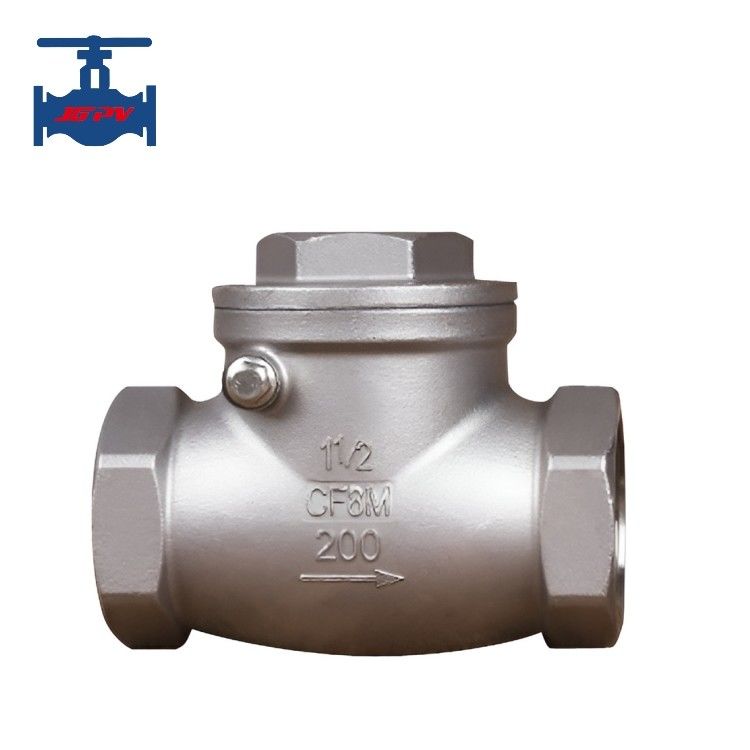

Highlight: SS threaded swing check valve
Product introduction:
The function of H14W-16P stainless steel threaded check valve is to prevent the backflow of media in pipelines. Check
valves belong to the category of automatic valves, where the opening and closing components are self-actuated by the force
of the flowing medium. Check valves are only used in pipelines with unidirectional media flow to prevent media backflow and
avoid potential accidents.
Product technical parameters:
|
Diameter nominal DN(mm) |
15～100 |
|
|
Pressure nominal PN(MPa) |
1.0～2.5 |
|
|
Pressure test Ps(MPa) |
Strength test (water) |
1.5～3.75 |
|
Seal test (water) |
1.1～2.75 |
|
|
Connection way |
Internal Thread |
|
Product features:
1. Short structural length, small volume and light weight
2. Quick closing of the disc with low water hammer pressure
3. Can be used in horizontal or vertical pipelines for convenient installation
4. Smooth flow passage with low fluid resistance
5. Sensitive action and good sealing performance
6. Short disc stroke and small closing impact force
7. Integral structure, simple and compact with beautiful appearance
