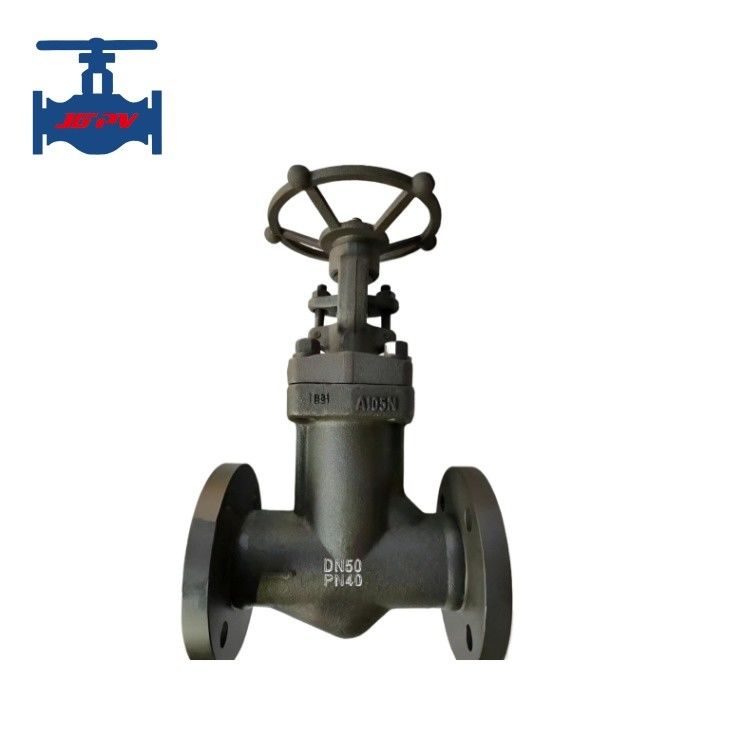

Bellows Globe Valve

Highlight: Bellows Globe Valve

Product introduction:

Bellows gate valve, also known as bellows sealed gate valve, forms a metal barrier between the fluid medium and the

atmosphere through automatic roll welding to ensure zero leakage of the valve stem. The valve stem adopts a double

sealing structure of bellows and packing to ensure leak-free sealing at the valve stem, which is particularly suitable for

pipelines of flammable, explosive, toxic and valuable media. The bellows are made of stainless steel or Inconel materials,

with a reasonable design of the bellows sealing structure, which is fatigue-resistant and has a long service life.

Product technical parameters:

Type Number		WZ41H-JGPV
Nominal Pressure PN(MPa)		1.0 - 4.0
Nominal Diameter DN(mm)		15～600
Test pressure (MPa)	Strength (water)	1.5 times of pressure nominal
	Sealing (water)	1.1 times of pressure nominal
	Sealing (Air)	0.6 times of pressure nominal
	Sealing for bellows (water)	1.5 times of pressure nominal
Raw material		WCB, CF8, CF8M
Medium suitable:		Water, steam, oil mediums
Working temperature		-196℃～600℃
Connection type		Flange
Operational method		Hand-wheel, bevel gear, pneumatic and electric actuators

Product features:

For the bellows globe valve, the key component is the metal bellows. The lower end is automatically roll-welded with the valve stem assembly, and the upper end is automatically roll-welded with the connecting plate, forming a metal barrier between the fluid medium and the atmosphere to ensure zero leakage of the valve stem.
The valve disc adopts a conical design, and the sealing surface is streamlined with the medium, resulting in better sealing performance and longer service life.
The dual sealing design (bellows + packing) ensures that if the bellows fail, the valve stem packing will also prevent leakage, complying with international sealing standards.
The valve cover is equipped with a grease nipple, allowing direct lubrication of the valve stem, nut, and bushing. Traditional globe valves can only lubricate the threads.
The ergonomic handwheel design features a longer service life, easy and convenient operation, and enhanced safety and reliability.

Tags:
